Monster Ripper 29"+
$1,599.00
Description
The 29”+ Monster Ripper is the biggest PK Ripper style of bike that we’ve ever built! The monster-sized PK frame design features oversized tubing, integrated head tube, the classic PK Ripper gusset, and a legendary looptail rear end built around monstrous 29” x 2.8” Vee Speedster tires. For extra stopping power, this bike comes equipped with Tektro hydraulic disc brakes. If you want to ride the biggest & baddest PK Ripper on the planet, look no further than the Monster Ripper.
KEY FEATURES
- 6061 Aluminum Monster PK Ripper frame with integrated headset and looptail rear end
- integrated headset and looptail rear end |Full Cr-Mo Landing Gear forks
- SE Racing forged alloy 2-piece cranks with 24mm hollow alloy spindle, external sealed bearing bottom bracket, and alloy chainring
- bracket, and alloy chainring |Vee Tire Co x SE Racing Speedster 29" x 2.8" tires
- FSA Orbit CE integrated sealed bearing headset |Tektro hydraulic disc brakes with easy to adjust open system, dual piston, 160mm rear rotor, 180mm front rotor
- Authentic ODI Mushroom II grips with 45 Years of Radness SE donuts
- Mushroom II grips with 45 Years of Radness SE donuts |Monster Flyer seat with bottle opener
- 34.2 pounds
SPECIFICATIONS
| Suggested Rider Size | 5'5"+ (165cm+) |
| Colour(s) | Blue Sparkle |
| Frame | 6061 Aluminum Floval Tubing, Internally-machined Integrated Head Tube, Looptail Rear End, Retro Dropouts, 73mm Euro Bottom Bracket, 142mm Spaced Dropouts, Disc Brake Tabs |
| Fork | Landing Gear, Full Cr-Mo, Disc Tabs, 445mm Axle to Crown, 39mm Offset, 110mm Spaced Dropouts |
| Crankset | SE Racing 175mm Forged Alloy 2-pc Cranks, Pedal Boss Inserts, External Sealed Euro Bottom Bracket, 24mm Hollow Alloy Spindle, 39T Alloy Chainring |
| Pedals | Wellgo Low-profile Platform |
| Chain | KMC S2 |
| Wheelset | Alloy 36H Nutted Hubs, Sealed Rear, 110mm Front Hub & 142mm Rear Hub, w/ 42mm Double-Wall Disc Rims, 20T Cassette, Stainless Spokes |
| Tyres | Vee Tire Co x SE Racing Speedster, 29" x 2.8" Front & Rear |
| Brakeset | Tektro HD-M285, Hydraulic Disc, Easy to Adjust Open System, Dual Piston, Automatic Caliper Positioning, 180mm Front Rotor, 160mm Rear Rotor |
| Brake Levers | Tektro HD-M285, 2-Finger Alloy, Front & Rear |
| Headset | FSA Integrated Orbit CE, Sealed 1-1/8" |
| Handlebar | Big Honkin' Cr-Mo Cruiser Bar, 29" x 7", 12° Backsweep, 2° Upsweep |
| Stem | Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, 55mm Reach |
| Grips | Special Edition ODI Mushroom II Dual-Ply Grips, Made in USA, w/ 45 Years of Radness SE Donuts |
| Seat | Monster Flyer Seat w/ Custom SE Bottle Opener Brace |
| Seatpost | Micro-Adjust Alloy, 27.2mm |
| Seat Clamp | Alloy, 31.8mm Inner Diameter |
| Accessories | Checkerboard SE Padset, Alloy Valve Caps, SE Chain Tensioners |
| Weight | 34.2 lbs / 15.51 kgs |
| * Specification subject to change without notice |

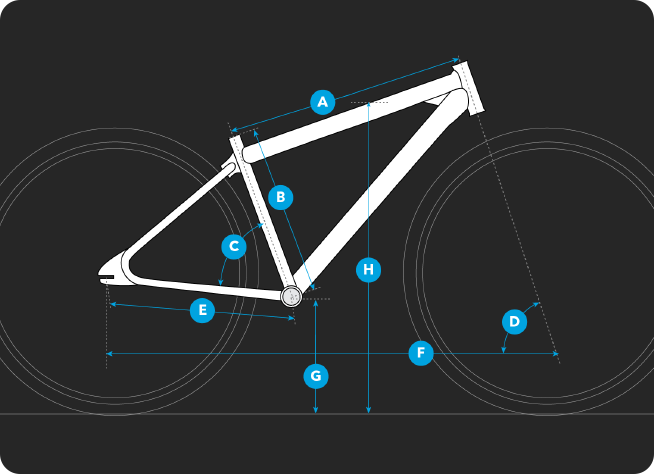

GEOMETRY
| A | Top Tube, Actual | 23.5" | |||||||||
| B | Seat Tube, Center To Top | 17" | |||||||||
| C | Seat Tube Angle | 71° | |||||||||
| D | Head Tube Angle | 71° | |||||||||
| E | Chainstay Length | 18.5" | |||||||||
| F | Wheelbase | 44.1" | |||||||||
| G | Bottom Bracket Height | 12.8" | |||||||||
| H | Standover | 31" | |||||||||
| Stem | 55mm | ||||||||||
| Handlebar Width | 29" | ||||||||||
| Crank | 175mm | ||||||||||
| Wheel Size | 29" | ||||||||||
| Seat Post Diameter | 27.2mm |
STEP-BY-STEP
HOW TO BUILD YOUR NEW SE BIKE!
SE bikes ship partially assembled from the factory. We always recommend that a trained mechanic build your bike, but if you follow this guide and take your time, you can build the bike yourself.
